SpaceClaim and SMOPlus

Extending the limits of sheet metal unfolding

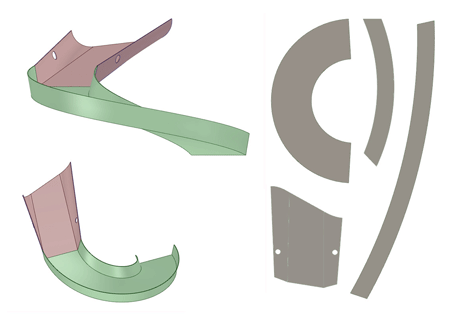

SpaceClaimSMOPlus extends the range of surfaces SpaceClaim can unfold.

Capabilities

All designers and engineers who must quickly and easily obtain in exact flat patterns of complex sheet metal models will find everything they need in the SMOPlus add-in.

Advantages

SMOPlus extends the limits of what sheet metal designers can unfold.

SMOPlus permits:

• The ability to imagine and invent any complex sheet metal shape
• The ability to convert solid models from clients into flat patterns without remodeling from scratch

Benefits

• Waste less time with CAD, delivering a fast ROI
• Better customer relations, lower customer costs, and higher profitability

About catalCAD

catalCAD, founded in 1986 as a sheet metal spin-off from Schneider Electric, has remained leaders in sheet metal manufacturing for over 25 years. catalCAD's products for sheet metal design have been adopted by thousands of users worldwide, including prestigious companies such as Mitsubishi, Schmidlin-TSK, and Nestle. catalCAD has helped SpaceClaim enhance their sheet metal capabilities and used SpaceClaim to develop SMOPlus, a set of advanced sheet metal tools that allow any kind of complex model to be unfolded.
